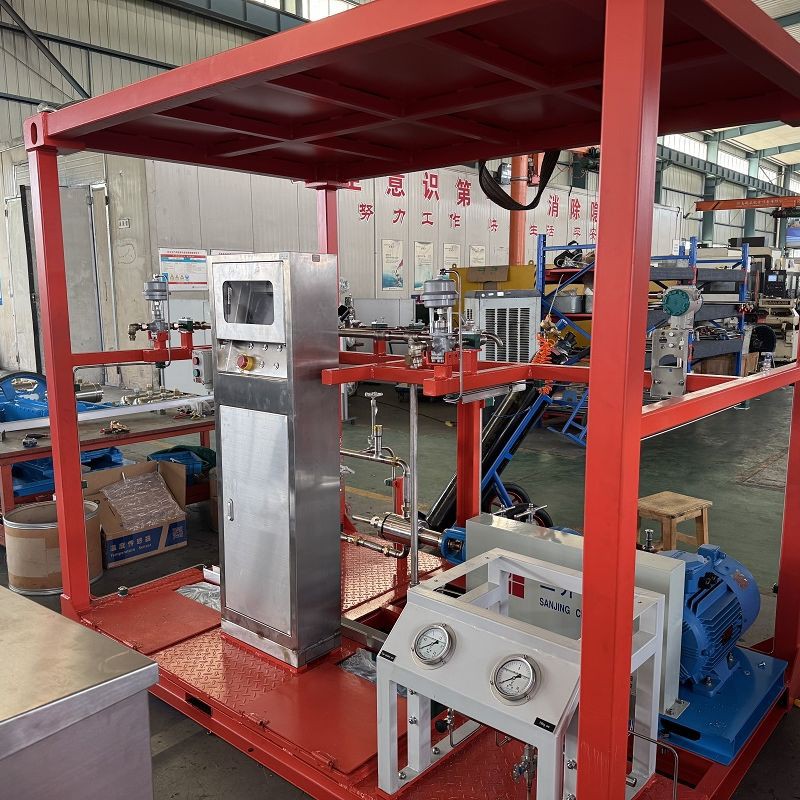

Gas filling pump skid integration level is high;all components are installed in a complete manner.Power system(fuel generator setgenerator set),pump,vaporizer,control system,pipeline,fuel supply system.
The system has special design; it can adapt to outdoor operations and frequent highway transportation. In addition, it has outstanding anti-bumping, windproof and independent working ability.
We understand that cryogenic applications are not "one-size-fits-all." We offer fully customized skids tailored to your specific flow rates, pressure requirements, and site classifications (ATEX / IECEx hazardous area zoning). Our engineering team collaborates with you to optimize the piping layout and instrumentation for maximum safety and accessibility.
Specification
|
NO. |
TERMS |
DESCRIPTION |
|
1 |
Type |
Horizontal, Piston, VF Motor, Pump and Ambient vaporizer |
|
2 |
Cold End |
Single |
|
3 |
Design Temperature |
-196°C |
|
4 |
Fluid |
LCO2 |
|
5 |
Max Inlet Pressure |
2.4 MPa |
|
6 |
Min Inlet Pressure |
1.38MPa |
|
7 |
Working Pressure |
8.0MPa |
|
8 |
Design Pressure |
10.0MPa |
|
9 |
Flow |
400-900L/h |
|
10 |
Motor Power |
7.5Kw/6P |
|
11 |
Piston diameters |
55mm |
|
12 |
Piston stroke |
32mm |
|
13 |
NPSHr |
1.0m |
|
14 |
Working time |
It can run intermittently or continuously for 24h |
